Tinytag Energy

TGE-0001

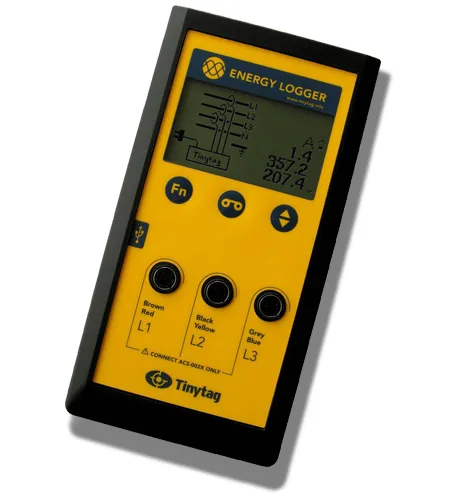

Energy logger kit, with standard size coils (85mm diameter), to monitor single and three phase power supplies.

Measurement:

250V; 0 to 2000A AC

Description:

The Energy Logger monitors voltage and current, and determines power and power factor. Peak and average values can be recorded. Voltage is measured via the standard mains lead and current is measured using non-invasive flexible coils. It can be used for spot checks or longer term recording.

Features:

Energy logger with standard coils
Voltage, current & power readings
Non-invasive
Compact and hand held
Highly accurate
Records for 6 weeks
Safe and straightforward
Started without computer
Magnet for attachment

Note:

The TGE-0001 kit contains everything needed to start logging, including 3 standard-size 85mm diameter clip-on Rogowski coils (ACS-0020), a mains lead, a USB cable, and Tinytag Explorer software (SWCD-0040).

$1,899.00 ex GST
